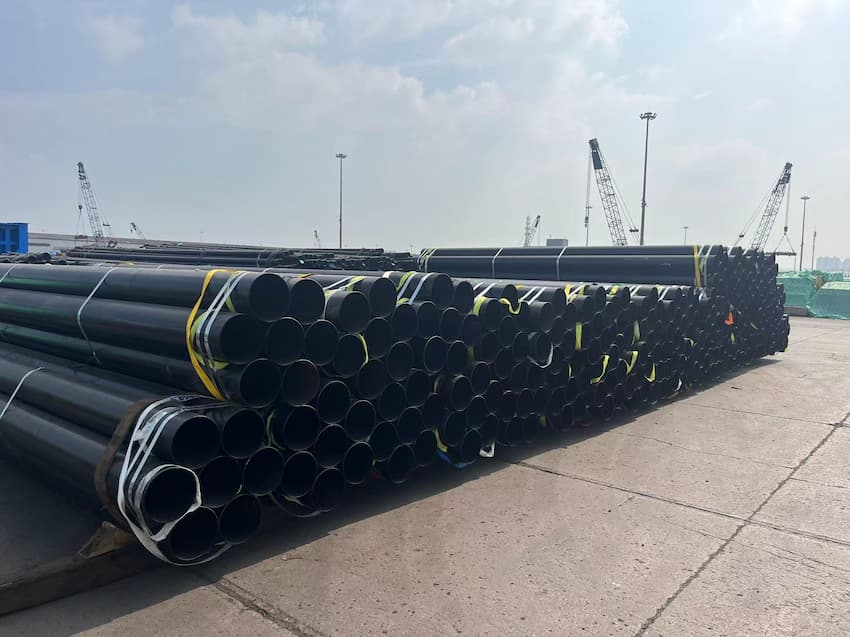

API 5L X52 Pipeline Excellent Mechanical Properties

API 5L X52 Pipeline Excellent Mechanical Properties

Category: Tag:

Description

Overview of API 5L X52 Steel

API 5L X52 is a high-strength, low-alloy steel grade used for manufacturing pipelines in the oil and gas industry. It offers excellent mechanical properties and durability, making it suitable for demanding applications in pipeline transportation systems.

Chemical Composition and Mechanical Properties

API 5L X52 steel has a carefully controlled chemical composition to achieve its desired properties. For PSL2, the maximum carbon content is 0.16%, with manganese content up to 1.65%. The minimum yield strength is 52,000 psi (360 MPa), and the minimum tensile strength is 66,000 psi (455 MPa).

Table: API 5L X52 Pipe Specifications

Property PSL1 PSL2
Yield Strength (min) 52,000 psi (360 MPa) 52,000 psi (360 MPa)
Tensile Strength (min) 66,000 psi (455 MPa) 66,000 psi (455 MPa)
Elongation (min) 21% 21%
Carbon Content (max) 0.26% 0.16%
Manganese Content (max) 1.40% 1.65%
Phosphorus Content (max) 0.030% 0.025%
Sulfur Content (max) 0.030% 0.015%

Manufacturing Processes

API 5L X52 pipes can be manufactured using various processes:

  1. Seamless: Hot rolling or cold drawing
  2. Welded: Electric Resistance Welding (ERW), Longitudinal Submerged Arc Welding (LSAW), or Spiral Submerged Arc Welding (SSAW)

Applications and Advantages

API 5L X52 pipelines are widely used in:

  1. Oil and gas transmission
  2. Offshore structures
  3. High-pressure fluid transportation systems
  4. Petrochemical industry pipelines

Key advantages include high strength-to-weight ratio, excellent toughness, and good weldability.

Quality Control and Testing

Rigorous quality control measures are implemented during the manufacturing of API 5L X52 pipes, including:

  1. Chemical composition analysis
  2. Mechanical property testing
  3. Hydrostatic testing
  4. Non-destructive examinations

People Also Ask(FAQs):

1.What is the difference between API 5L X52 PSL1 and PSL2?

PSL2 has stricter requirements for chemical composition, mechanical properties, and testing compared to PSL1. PSL2 is typically used for more critical applications.

2.How does API 5L X52 compare to other grades like X42 or X60?

API 5L X52 has higher yield and tensile strengths compared to X42, but lower than X60. It offers a good balance of strength and weldability.

3.What are the main applications of API 5L X52 pipelines?

Main applications include oil and gas transmission pipelines, offshore structures, and high-pressure fluid transportation systems.

4.What manufacturing processes are used for API 5L X52 pipes?

API 5L X52 pipes can be manufactured using seamless (hot rolling or cold drawing) or welded (ERW, LSAW, SSAW) processes.

5.What are the key advantages of using API 5L X52 steel for pipelines?

Key advantages include high strength-to-weight ratio, excellent toughness, good weldability, and suitability for high-pressure applications.
