Description
Chemical Composition and Mechanical Properties of ABS Grade AH36 Steel
Chemical Composition:
| Element | Percentage |
|---|---|
| Carbon (C) | ≤0.18% |
| Manganese (Mn) | 0.90 – 1.60% |
| Phosphorus (P) | ≤0.035% |
| Sulfur (S) | ≤0.035% |
| Silicon (Si) | 0.10 – 0.50% |
| Nickel (Ni) | ≤0.40% |
| Chromium (Cr) | ≤0.20% |
| Copper (Cu) | ≤0.35% |
Mechanical Properties:
| Property | Value |
|---|---|
| Yield Strength (min) | 51 ksi (345 MPa) |
| Tensile Strength | 71 – 90 ksi (490 – 620 MPa) |
| Elongation (min) | 22% |
Applications and Industries Utilizing ABS Grade AH36 Steel Plates
ABS Grade AH36 steel is primarily used in shipbuilding and marine applications due to its high strength and durability:
- Shipbuilding: Used in the construction of bulk carriers, container ships, and tankers.
- Offshore Structures: Suitable for offshore drilling units and platforms.
- Marine Equipment: Components requiring high strength and resistance to harsh marine environments.
- General Cargo Ships: Structural parts for vessels operating in mild climates.
Corrosion Resistance and Performance Characteristics of AH36 Steel
- Corrosion Resistance: Exhibits good resistance to atmospheric corrosion, making it suitable for marine environments.
- Performance Characteristics: High strength-to-weight ratio, excellent toughness, and good weldability enhance its performance in demanding applications.

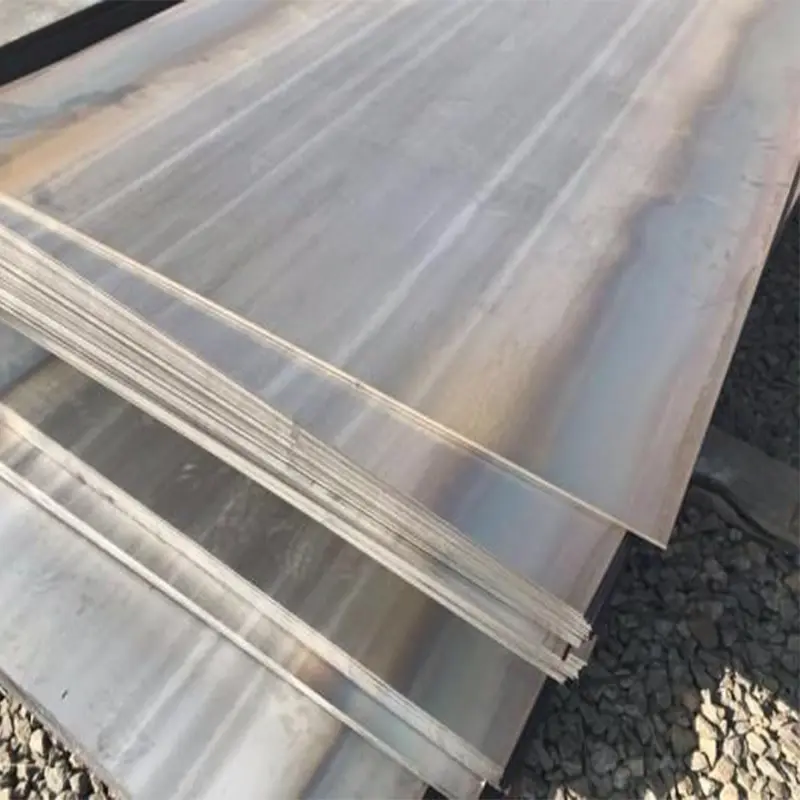

Manufacturing Processes for ABS Grade AH36 Steel Plates and Coils
ABS Grade AH36 steel plates are typically produced through the following processes:
- Hot Rolling: The steel is rolled at high temperatures to achieve desired thickness.
- Cold Rolling: Further processing improves surface finish and dimensional accuracy.
Available Dimensions:
| Thickness Range | Width Range | Length Range |
|---|---|---|
| 4.76 – 150 mm | Up to 3200 mm | Up to 12000 mm |
Welding and Fabrication Considerations for AH36 Steel
- Weldability: Generally good weldability; can be welded using standard methods such as MIG, TIG, or stick welding.
- Post-Weld Treatment: Post-weld heat treatment is usually not required but can improve mechanical properties depending on application requirements.
Comparison of ABS Grade AH36 with Other Shipbuilding Steel Grades
| Grade | Yield Strength (ksi) | Tensile Strength (ksi) | Typical Applications |
|---|---|---|---|
| AH36 | ≥51 | 71 – 90 | Bulk carriers, container ships |
| DH36 | ≥51 | 71 – 90 | Offshore supply vessels, docks |
| EH36 | ≥51 | 71 – 90 | Offshore drilling rigs, cold-weather vessels |
At HL Steel Company, we provide high-quality ABS Grade AH36 shipbuilding steel plates tailored for various marine applications, ensuring optimal performance and reliability in demanding environments.
