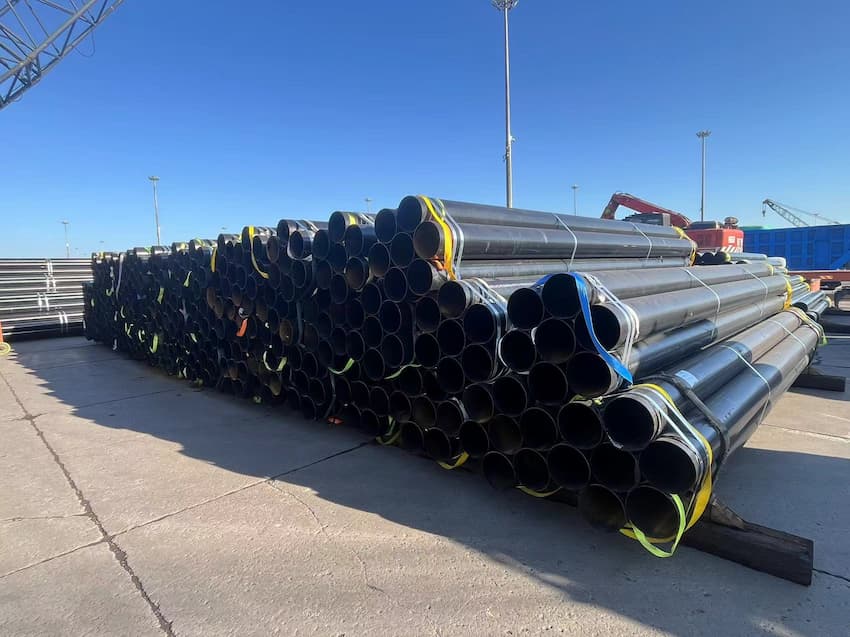

ASTM A53 Gr. A pipeline

ASTM A53 Gr. A pipeline

Category: Tag:

Description

Chemical Composition and Mechanical Properties of A53 Grade A Steel

A53 Grade A steel has specific chemical and mechanical properties that make it suitable for various applications.

Chemical Composition of A53 Grade A Steel:

Element Maximum Percentage
Carbon 0.25%
Manganese 0.95%
Phosphorus 0.05%
Sulfur 0.045%
Copper 0.40%
Nickel 0.40%
Chromium 0.40%
Molybdenum 0.15%
Vanadium 0.08%

Mechanical Properties of A53 Grade A Steel:

Property Value
Tensile Strength (min) 48,000 psi (330 MPa)
Yield Strength (min) 30,000 psi (205 MPa)

Manufacturing Processes for A53 Grade A Pipes

A53 Grade A pipes can be manufactured using different processes:

  1. Seamless (Type S)
  2. Electric-resistance welded (Type E)
  3. Furnace-welded (Type F)

These pipes are available in sizes ranging from NPS 1/8″ to NPS 26″ (DN 6 to DN 650).

Applications and Industries Using A53 Grade A Pipelines

A53 Grade A pipes find applications in various industries due to their properties:

  1. Plumbing systems for water and gas transportation
  2. HVAC systems for ductwork and piping
  3. Low-pressure oil and gas transportation
  4. Structural applications in construction
  5. Fencing and guardrails
  6. Mechanical and automotive industries for low-pressure equipment

Comparison Between A53 Grade A and Grade B Steel Pipes

Property A53 Grade A A53 Grade B
Tensile Strength (min) 48,000 psi (330 MPa) 60,000 psi (415 MPa)
Yield Strength (min) 30,000 psi (205 MPa) 35,000 psi (240 MPa)
Carbon Content (max) 0.25% 0.30%
Manganese Content (max) 0.95% 1.20%

Grade A is primarily used for applications under low pressure and low temperature, while Grade B is suitable for medium pressure and temperature conditions.

Quality Standards and Testing for A53 Grade A Pipes

A53 Grade A pipes undergo various tests to ensure quality:

  1. Tensile strength testing
  2. Chemical composition analysis
  3. Hydrostatic testing
  4. Non-destructive electrical testing (for welded pipes)

At HL Steel Company (bebonchina.com), we ensure that all our A53 Grade A pipelines meet or exceed these quality standards, providing our customers with reliable and high-performance products for their diverse industrial needs.
