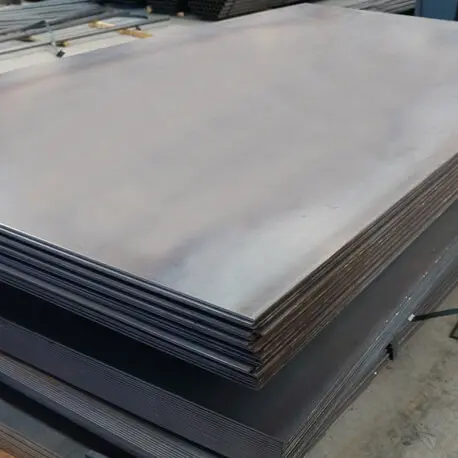

Overview of ASTM A516 Grade 70 (A516GR70) Steel Plate
ASTM A516 Grade 70 is a carbon steel plate specification primarily used for pressure vessel applications in moderate to lower temperature services. It is known for its excellent weldability, notch toughness, and ability to withstand high pressure, making it a preferred choice in the oil, gas, and petrochemical industries.
Chemical Composition and Mechanical Properties of A516 Grade 70 Steel
Chemical Composition:
| Element | Percentage |
|---|---|
| Carbon (C) | 0.27 – 0.31% |
| Manganese (Mn) | 0.79% max |
| Phosphorus (P) | ≤0.025% |
| Sulfur (S) | ≤0.025% |
| Silicon (Si) | 0.15 – 0.40% |
| Copper (Cu) | ≤0.40% |
Mechanical Properties:
| Property | Value |
|---|---|
| Yield Strength (min) | 260 MPa (38 ksi) |
| Tensile Strength | 485 – 620 MPa (70 – 90 ksi) |
| Elongation in 200mm (min) | 17% |
| Elongation in 50mm (min) | 21% |
Applications and Industries Utilizing A516 Grade 70 Steel Plates
ASTM A516 Grade 70 steel plates are widely used across various industries, including:
- Pressure Vessels: Commonly used in the construction of pressure vessels that require high strength and durability.
- Boilers: Ideal for manufacturing steam boilers due to their ability to withstand high temperatures and pressures.
- Storage Tanks: Utilized in the construction of storage tanks for chemicals, oil, and other materials.
- Oil & Gas: Critical components in pipelines and offshore platforms.
- Power Generation: Used in power plants for various applications including heat exchangers.
Corrosion Resistance and Performance Characteristics of A516 Grade 70
- Corrosion Resistance: Exhibits good resistance to atmospheric corrosion; however, protective coatings are recommended for harsh environments.
- Performance Characteristics: Known for its excellent notch toughness, allowing it to perform well under low-temperature conditions without becoming brittle.
Manufacturing Processes for ASTM A516 Grade 70 Steel Plates
A516 Grade 70 steel plates are typically manufactured through the following processes:
- Hot Rolling: The plates are rolled at high temperatures to achieve desired thicknesses.
- Cold Rolling: Additional processing may be done to improve surface finish.
Available Dimensions:
| Thickness Range | Width Range | Length Range |
|---|---|---|
| Up to 100 mm | Up to 2500 mm | Up to 12000 mm |
Welding and Fabrication Considerations for A516 Grade 70 Steel
- Weldability: Excellent weldability; can be welded using standard welding techniques such as MIG, TIG, or stick welding.
- Post-Weld Treatment: Post-weld heat treatment is generally not required but can enhance mechanical properties if necessary.
Comparison of ASTM A516 Grade 70 with Other Pressure Vessel Steel Grades
| Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Typical Applications |
|---|---|---|---|
| A516 Gr.70 | ≥260 | 485 – 620 | Pressure vessels, boilers |
| A516 Gr.60 | ≥220 | 415 – 550 | Similar applications as Gr.70 |
| A572 | ≥345 | ≥450 | Structural applications requiring higher strength |
At HL Steel Company, we provide high-quality ASTM A516 Grade 70 (A516GR70) carbon steel plates tailored for various industrial applications, ensuring optimal performance and reliability in demanding environments.
